ETFE
(Ethylene TetraFluoroethylene)

ETFE is fluoropolyten based synthetic material. It has wide usage area.

Cladding, upper enclosure, canopy, etc.

Generally in upper enclosure.

It provides access to use for long spans because of its high tensile strength.

It's recyclable and sustainable but not renewable. It has self cleaning function. It is transparent and it stands very aesthetically.

It can be produced and used with some patterns and colors.

It is utilizable for high tech systems like

Photovoltaic cell and

LED Lighting

Properties of Material

           It has low thermal conductivity.
           U: 1.9 W/m2K
           It has no high resistance against fire.
           Flammability: DIN 4102 Class B1
           It allows high light transmission.
           It is very lighter than the glass with 2-3 kg/m2 average mass.
           Therefore, it is cost effective.
           It has higher tensile stress than glass.
           It provide accessing long spans with light structural systems.
           It has long life time approximately with 25 years.
           It is impermeable against water.

Production Process

           First preparation for CNC cutting, size controlled for layout and cutting, gluing.
           Then inner rope joint for increasing static durability of ETFE.
           Then gluing pocket and cord for mounting to structural aluminium system.
           Preparation for packaging, then shipping/ forwarding.

Finally it is mounted mechanically to aluminium profiles. It has three different usage system: Single layer, double or triple layer. When it is used as double or triple layer, it is inflated consistently with Blower to balance the air.

Samples in the City

41 BURDA MALL

HALDIZ İNŞAAT
KOCAELİ, TÜRKİYE
2016

VODAFONE ARENA

DB ARCHİTECTS
BEŞİKTAŞ, İSTANBUL
2016

https://tr.sputniknews.com/20150815/1017160527.html

Detail

THE MULTİMODAL SNCF STATION

SNCF
RENNES, FRANCE

2020

3D MODEL

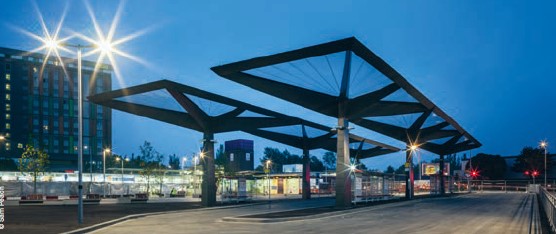

Other Samples

THE SHED

BLOOMBERG BUILDING

Date: 2019

Location: New York, NY

USA

Size: 4,110 m²

Structure: Steel

Architects: Diller Scofidio + Renfro,

Rockwell Group

ARTIC

Anaheim Regional Transportation

Intermodal Center

Date: 2014

Location: Anaheim, CA

USA

Size: 5,368 m²

Structure: Steel

Architects: HOK International

TROPIC HALL

GONDWANALAND

Date: 2010

Location: Leipzig,

Germany

Size: 20,000 m²

Structure: Steel

Architects: Henchion+Reuter

Architects

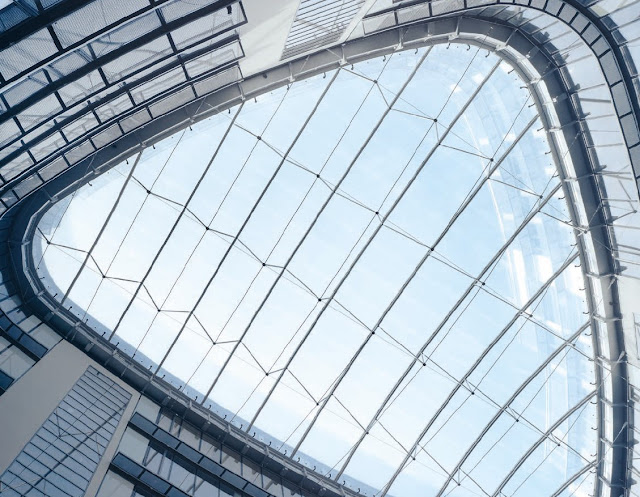

OVAL ON BASELER PLATZ

Date: 2004

Location: Frankfurt,

Germany

Size: 700 m²

Structure: Steel/Cable

Architects: AS+P,

Bollinger + Grohmann

T. ROWE PRICE PAVILION

AT EAGER PARK

ETFE Canopy

Date: 2017

Location: East Baltimore, MD

USA

Size: 200 m²

Structure: Steel

Architects: Gensler, Mahan Rykiel

Associates Landscape

Architects

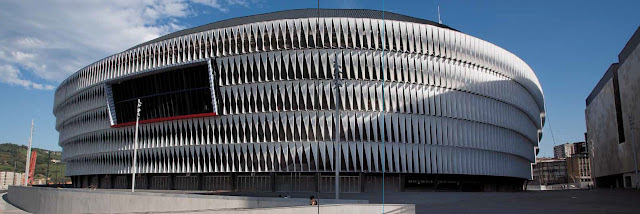

Project: San Mamés new stadium

Location: Bilbao. Spain

Architect: César Azcárate ACXT-IDOM

Area: 19,500 m2

System: Monolayer with ETFE sheet of 250 microns, white colour

Finally, we can see that ETFE has large usage areas; cladding, upper enclosure, canopy and we saw that above it can use for sun shading. Also, It can be used for aesthetic purposes.
